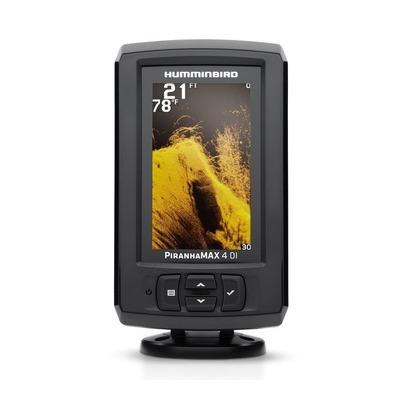

Rear panel color sensor Piranha MAX4 DI - 200/455kHz

The PiranhaMAX fishfinders now incorporate the style and functionality of the HELIX series.
With a 20% larger screen offering even finer image resolution (70% more pixels), the PiranhaMAX fishfinders, the most compact of the Humminbird brand, offer a comfortable reading of "King size".
Performance-wise, they don't miss a beat with a 50%* increase in power output.

200 and 455 kHz dual-beam 28° and 16° probes with Down Imaging® technology.
Peak power 2400 watts (300 watts RMS).

• 100% waterproof (IPX7 standard)
• New housing
• 4.3 inch HD screen
• Menu in French and 8 autres languages
• Easy to use

Features :

• 200 Khz / 28° @ -10db
• 455 Khz / 16° @ -10db
• 455 Khz / 75° @ -10db
• Waterproofing : IPX7
• French menu
• Number of beams: 2
• Total scan width: 75
• Screen type: TFT Color
• Screen diagonal: 4.3
• Target separation: 6.5 cm
• Screen resolution: 480 x 272 pixels
• Standard probe: Rear panel
• Water temperature
• Number of colors: 256
• RMS power: 300W
• Power (peak) : 2400W
• Dimensions on stand (cm) : 9.9 x 17.3 x 9.1
• Power supply type : 10 20 VDC external
• Gross weight : 1.10 kg
• Low battery alarm
• Fish alarm
• Depth alarm
• Noise filters
• Fish ID
• Fish ID+
• Structure ID and Reverse
• Grey and white line
• Integrated simulator
• Selection of displayed colors
• Water temperature
• Scroll speed
• Zoom on the bottom
